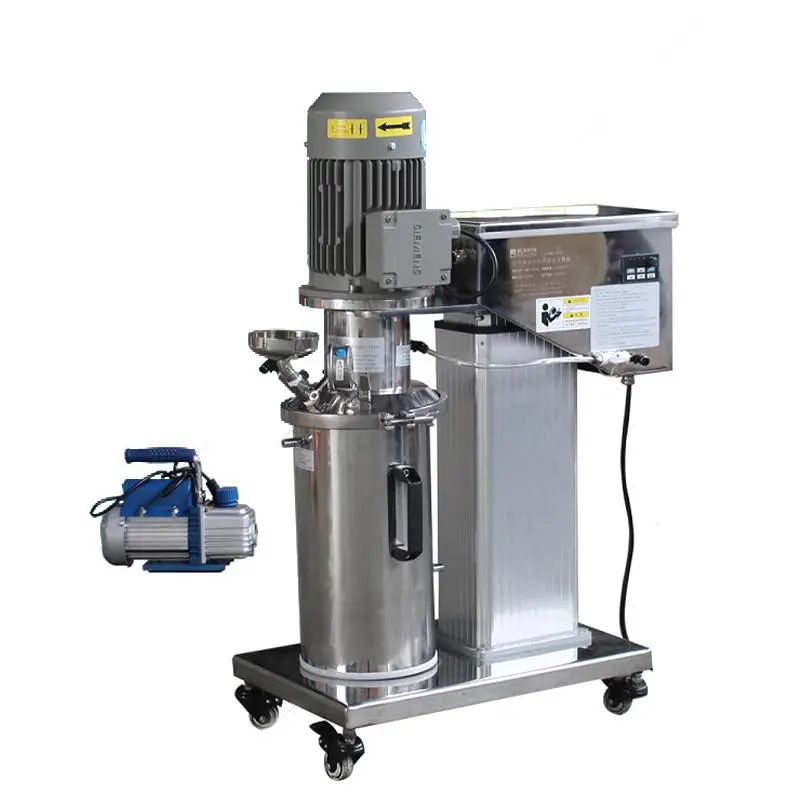

Professional vacuum closed dispersion stirrer with 0.75KW input power and speed range of 0-3000rpm. The unit features a processing capacity of 5-10L, 350mm lifting stroke, and electric lifting system, built with full stainless steel construction and explosion-proof certification for industrial safety.
Purpose & Design
The Z-series vacuum-sealed dispersing mixer is engineered for pre-production testing and small-batch processing. It handles materials ranging from paints and coatings to pigments, plastics, and food products, with a processing capacity of 10-40L.
Key Features
- Premium motor with reduced noise and enhanced stability
- Digital CPU display with speed control and timer functions
- Electric lifting system with mobile caster base
- Maximum speed: 3000rpm with line speed up to 33m/s
- Double-end machine-sealed structure for effective vacuum defoaming
- Quick-release dispersing plate with hexagon socket bolts
- Safety locking mechanism for sealing barrel
Technical Operation
The dispersing disc operates at high speeds to create circular material flow and strong vortex action. This generates intense shear impact and particle friction, enabling:
- Rapid dispersion
- Material dissolution
- Uniform mixing
- Consistent stirring
Industry Applications
- Suitable for materials with viscosity ≤25000 cps
- Processing capacity: 10-40L
- Industries: Biology, medicine, food, paint, ink, adhesives, dyes, pesticides
Specifications
| Feature | Specification |
|---|---|
| Input power | 0.75KW |
| Speed range | 0~3000rpm |
| Capacity | 5~10L |
| Lifting stroke | 350mm |
| Impeller configuration | F80 / 100mm |
| Lifting method | Electric lift |
| Explosion-proof | Yes |
Packaging Information
Standard package includes:
- Main unit (1x)
- Stirring head assembly (1x)
- Operation manual (1x)
- Certificate of conformity (1x)
- Warranty documentation (1x)
*Note: Package contents may vary based on manufacturer’s latest standard configuration.
Frequently Asked Questions
Q: Is this suitable for applications requiring explosion-proof features and specific rotation speeds?
A: Yes, this model features explosion-proof certification and offers speed control from 0-3000rpm.
Q: Can this unit perform vacuum operations during the dispersion process?
A: Yes, the unit is designed for vacuum operation during dispersion with its sealed system.
Q: Does this model include a vacuum pump?
A: No, the vacuum pump is sold separately as an optional accessory.
Q: Is this equipment compliant with GB/T11543 standards?
A: Yes, this dispersing stirrer meets all requirements specified in GB/T11543 standards.
