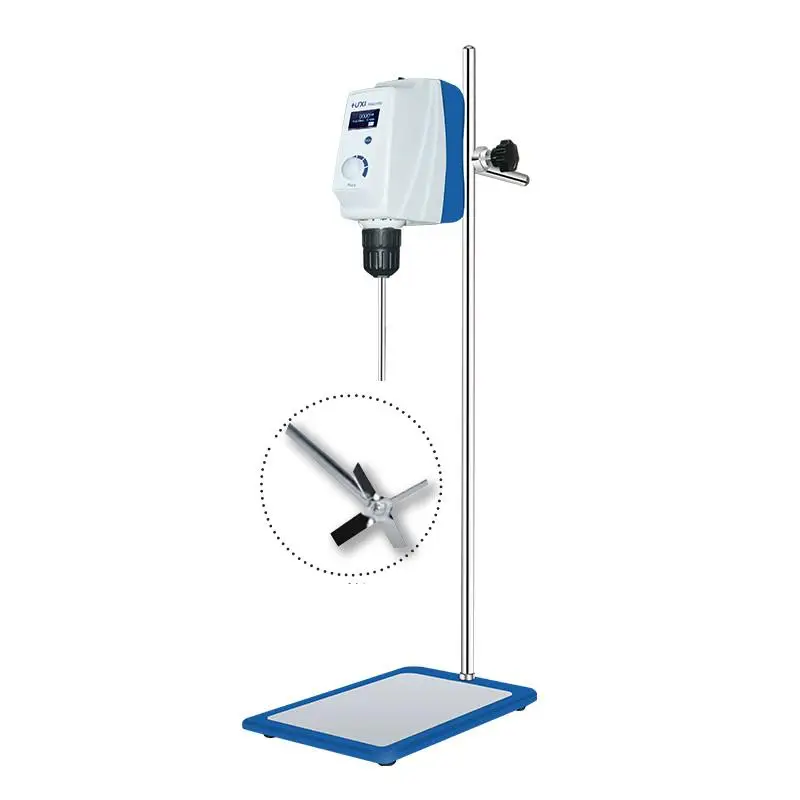

RWD150 Powerbasic Stirrer Impeller Blade 50mm Rod Length 500mm

By /

The RWD150 overhead stirrer features a 50mm four-blade impeller and LCD display for precise control. This professional-grade stirrer operates at 30-2200rpm with both high and low-speed settings, capable of mixing up to 60L with its brushless DC motor.

Overview

This laboratory overhead stirrer is designed for mixing medium to high viscosity liquids in various industrial and research applications. The LCD display provides accurate speed and time control, while the self-locking chuck ensures secure operation.

Key Features

  • LCD display with speed and time adjustment
  • Wide speed range: 30-2200rpm with constant speed control
  • Brushless DC motor for long-term operation
  • Automatic overload and motor protection system
  • Built-in stirring paddle penetration hole
  • Automatic torque adjustment based on sample viscosity
  • Multiple stirring paddle options available

Applications

  • Chemical synthesis
  • Pharmaceutical production
  • Physical and chemical analysis
  • Petrochemical processing
  • Cosmetics manufacturing
  • Food production
  • Biotechnology research

Specifications

ParameterValue
Speed Range30~2200rpm
Mixing Capacity60L
Input Power160W
Output Power150W
Dimensions18683220mm
Maximum Torque80N.cm
Weight3.0kg
Display TypeLCD
Maximum Viscosity80000mPa·s
Chuck Clamping Range0.5~10mm
Operating Temperature5~40℃
Operating Humidity80%
Voltage100-240VAC
Frequency50/60HZ
Protection RatingIP42
Timer Range1~9999min
Impeller Specifications50mm diameter, 8mm rod diameter, 500mm rod length

Packaging Information

Each unit comes in a protective package containing:

  • 1x Complete stirrer unit
  • 1x User manual
  • 1x Quality certificate
  • 1x Warranty card
  • 1x Four-blade impeller (50mm)

*Package contents may vary based on latest manufacturer specifications

FAQ

Q: What is the recommended rod diameter for the RWD150?
A: While the chuck can accommodate rods from 0-10mm, the optimal rod diameter range is 6-10mm for maximum stability. Rods thinner than 6mm may experience unwanted vibration during operation.
