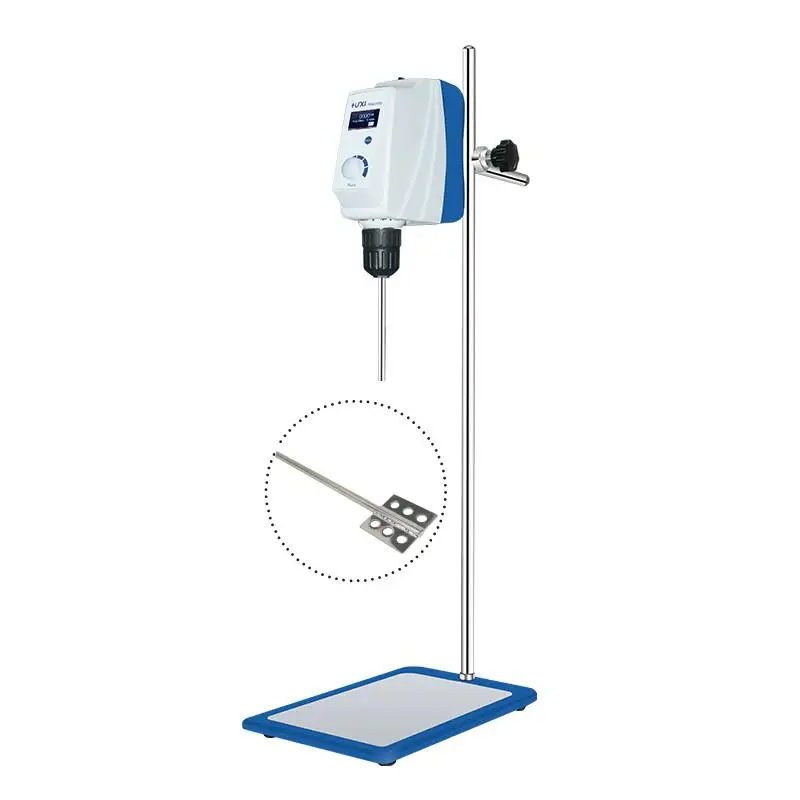

RWD150 LCD Top Stirring Round Six Hole Fan Impeller with 50mm Rod Length 500mm

By /

Professional laboratory overhead stirrer featuring LCD display and self-locking chuck for precise control. The unit delivers 30-2200rpm speed range with a 60L stirring capacity, powered by a reliable brushless DC motor optimized for medium to high viscosity mixing applications.

Applications

This overhead stirrer specializes in mixing medium to high viscosity liquids across chemical, pharmaceutical, petrochemical, cosmetic, food, and biotechnology sectors. The LCD interface provides enhanced control and safety compared to basic LED models. Features include:

  • Advanced LCD display showing real-time speed and time adjustments
  • Wide speed range (30-2200rpm) with constant speed maintenance
  • Durable brushless DC motor for extended continuous operation
  • Automatic overload protection with alarm system
  • Built-in stirring paddle penetration hole for easy height adjustment
  • Automatic torque adjustment based on sample viscosity
  • Multiple stirring paddle options available

[Detailed paddle options section removed for brevity]

Specifications

ParameterValue
Speed Range30~2200rpm
Capacity60L
Input Power160W
Output Power150W
Dimensions18683220mm
Maximum Torque80N.cm
Weight3.0kg
Display TypeLCD
Maximum Viscosity80000mPa·s
Chuck Clamping Range0.5~10mm
Speed Resolution±1rpm
Protection RatingIP42
Operating Temperature5~40℃
Operating Humidity80%
Power Supply100-240VAC, 50/60HZ
Safety FeaturesAutomatic motor and overload protection
Timer Range1~9999min
Impeller Specifications50mm diameter, 8mm rod diameter, 500mm rod length

Packaging Information

Each unit ships with:

  • Main stirring unit
  • Operating manual
  • Quality certificate
  • Warranty documentation
  • One round six-hole fan impeller

Package contents may vary based on latest manufacturer standards

FAQ

Q: What rod diameters are compatible with this stirrer?
A: While the chuck can accommodate rods from 0-10mm, optimal performance is achieved with 6-10mm diameter rods. Rods below 6mm may experience stability issues during operation.
