RWD150 LCD Top Stirring Dissolving Impeller Slurry 100mm Rod length 350mm

By /

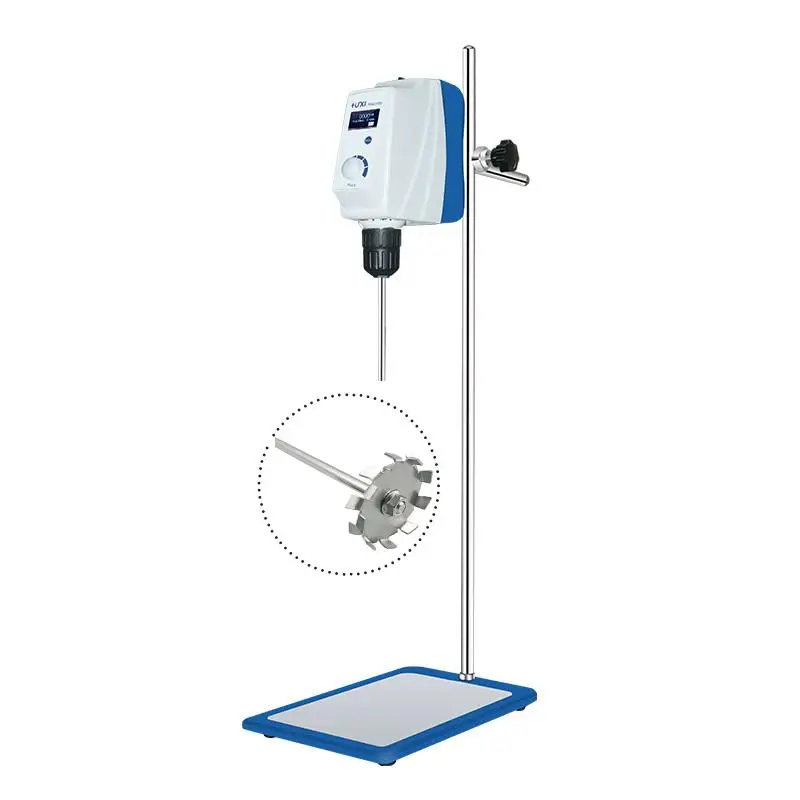

The LCD top stirring dissolving impeller features a 100mm dissolving impeller and operates with minimal noise through its brushless DC motor. It offers precise control with LCD display, self-locking chuck, and 30-2200rpm speed range, capable of handling up to 60L mixing capacity.

Overview

This laboratory-grade overhead stirrer is designed for mixing medium to high viscosity liquids with outstanding performance and safety features. The unit delivers:

  • Precise mixing control with LCD display for speed and time adjustments
  • Versatile speed range from 30-2200rpm with constant speed maintenance
  • Durable brushless DC motor for extended continuous operation
  • Comprehensive safety features including overload protection and automatic shutoff
  • Built-in stirring paddle penetration hole for easy height adjustments
  • Automatic torque adjustment based on sample viscosity
  • Multiple stirring paddle options for various applications

The stirrer serves various industries including:

  • Chemical synthesis
  • Pharmaceutical manufacturing
  • Physical and chemical analysis
  • Petrochemical processing
  • Cosmetics production
  • Food processing
  • Biotechnology research

Basic Parameters

FeatureSpecification
Speed Range30~2200rpm
Mixing Capacity60L
Input Power160W
Output Power150W
Maximum Torque80N.cm
Maximum Viscosity80000mPa·s

Physical Properties

FeatureSpecification
Dimensions18683220mm
Total Weight3.0kg
Chuck Clamping Range0.5~10mm
Protection RatingIP42

Operating Conditions

FeatureSpecification
Operating Temperature5~40℃
Humidity Tolerance80%
Voltage100-240VAC
Frequency50/60HZ

Impeller Specifications

FeatureSpecification
TypeDissolved Impeller
Diameter100mm
Rod Diameter8mm
Rod Length350mm

Packaging Information

Each unit comes in a complete package containing:

  • 1x Fully assembled stirring unit
  • 1x Operating manual
  • 1x Quality certificate
  • 1x Warranty card
  • 1x Dissolving impeller

*Package contents may vary based on manufacturer’s latest standard configuration.

FAQ

Q: What rod diameter sizes work best with the RWD150?
A: While the chuck can accommodate rods from 0-10mm, the optimal rod diameter range is 6-10mm for maximum stability. Rods thinner than 6mm may experience unwanted vibration during operation.
