Pneumatic Stirrer for High-Temperature and Hazardous Chemical Mixing

By /

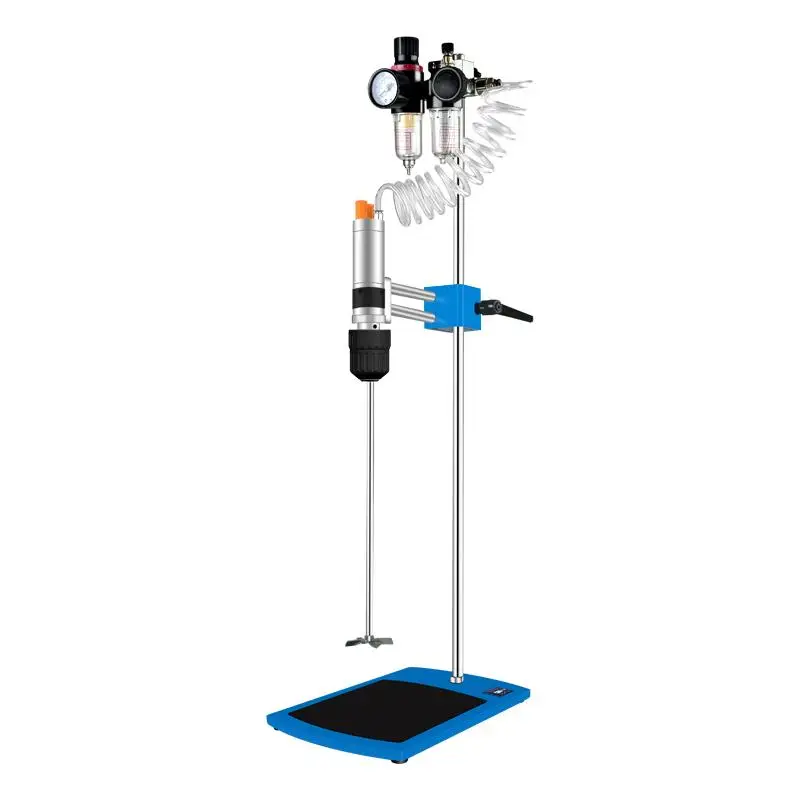

This professional-grade pneumatic stirrer converts compressed gas pressure into mechanical energy for safe laboratory mixing operations. The device is specifically engineered for handling flammable substances, explosive materials, and chemicals in high-temperature environments.

Applications

This pneumatic mixer uses an advanced air motor system that converts compressed air pressure into mechanical energy for laboratory mixing applications. It’s designed specifically for handling:

  • Flammable and explosive substances
  • High-temperature materials
  • Paints and solvents
  • Chemical compounds

Key Features

  • Compact design with high power output
  • High rotational torque with load-start capability
  • Integrated pressure gauge for real-time monitoring
  • Self-locking chuck with precision concentricity
  • Dual-hole square lifting clamp for height adjustment
  • Explosion-proof air motor with anti-static properties
  • Multiple stirring paddle options for various applications

Stirring Paddle Options

The stirrer comes with 11 specialized paddle types:

  1. Round three-hole fan-type (for soft stirring)
  2. Dissolving paddle (for high viscosity liquids)
  3. Three-blade (for axial flow mixing)
  4. Centrifugal (for narrow-mouth containers)
  5. Four-blade (for medium/low viscosity)
  6. Screw type (for high viscosity liquids)
  7. Round six-hole fan-type (for heat exchange)
  8. One-word paddle (for general purpose)
  9. Round anchor (for wall cleaning)
  10. Square anchor (for polymer reactions)
  11. Square hole fan type (for medium-low speeds)

Specifications

ParameterValue
Torque≤80N.cm
Motor Power150w
Ventilation Pressure0~6bar
Processing Viscosity≤5000cp
Speed Range3000rpm
Impeller Fixing MethodSelf-locking chuck
Processing MethodBatch processing
Working Temperature5~40℃
Allowable Relative Humidity80%
Instrument Size315200800mm
Encasement Size8253651200mm
Net Weight9.5kg
Gross Weight11.5kg

Packaging Information

Standard package includes:

  • Air motor unit
  • 2x Baseplates
  • 3x Support poles
  • 4x Cube chucks
  • Oil-water separator
  • Stirring components
  • Air hose
  • Warranty certificate
  • Operation manual

*Package contents may vary based on manufacturer updates

Frequently Asked Questions

What costs should I expect beyond the listed price?
The listed price is the base factory price. Additional costs include:

  • International shipping fees
  • Import duties and taxes
  • Local handling charges
  • Insurance costs

What is the purchasing process?

  1. Submit inquiry through quotation form
  2. Receive detailed price quote for your region
  3. Review and confirm payment terms
  4. Complete contract signing
  5. Process payment
  6. Track shipment to delivery

How are repairs handled?
For international repairs:

  • Customer covers shipping and insurance costs
  • Warranty repairs are free of charge
  • Non-warranty repairs are quoted based on required service
  • Standard turnaround time is 7-14 business days
  • All repaired units undergo quality testing before return shipment
