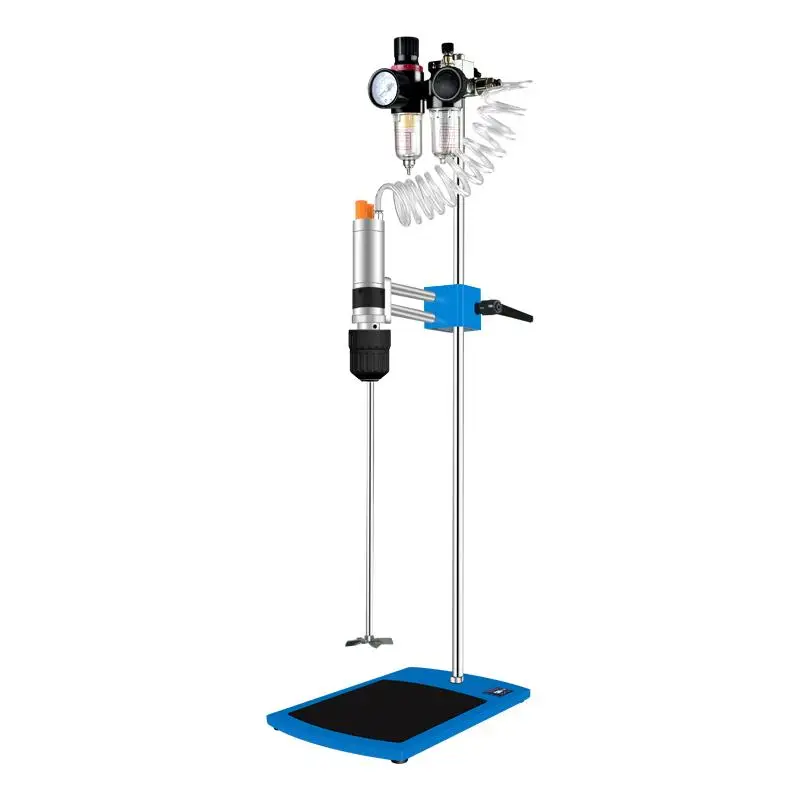

Pneumatic Solvent Stirrer with Square Hole Fan Impeller

This pneumatic stirrer features a 50mm square hole fan blade impeller designed for laboratory mixing applications. The device converts compressed gas pressure into mechanical energy, making it ideal for mixing paints, chemicals, and solvents in environments with flammable substances or high temperatures.

Applications

This professional-grade pneumatic mixer utilizes an air motor system to convert compressed air into mechanical stirring power. The design prioritizes safety and efficiency for laboratory mixing applications, particularly when working with:

• Flammable substances
• Explosive materials
• High-temperature environments
• Paints and coatings
• Chemical solutions
• Industrial solvents

Key Features

• Compact design with high power output
• High rotational torque with load-start capability
• Integrated pressure gauge for monitoring
• Premium self-locking chuck with enhanced concentricity
• Dual-hole square lifting clamp for height adjustment
• Explosion-proof construction with anti-static properties
• Compatible with multiple stirring paddle options

Available Paddle Options

The stirrer supports 11 different paddle types, each optimized for specific applications:

1. Round three-hole fan-type
2. Dissolving paddle
3. Three-blade design
4. Centrifugal style
5. Four-blade configuration
6. Screw type
7. Round six-hole fan-type
8. One-word design
9. Round anchor style
10. Square anchor model
11. Square hole fan type

Specifications

Parameter	Value
Motor Power	150W
Torque	≤80N.cm
Operating Pressure	0-6 bar
Viscosity Range	≤5000cp
Maximum Speed	3000rpm
Working Temperature	5-40°C
Relative Humidity	80%
Dimensions	315×200×800mm
Package Size	825×365×1200mm
Net Weight	9.5kg
Gross Weight	11.5kg
Impeller Specifications	Square Hole Fan Type, 50mm diameter, 8mm rod diameter, 350mm rod length

Packaging Information

Standard package includes:

• 1× Air motor unit
• 1× Base plate assembly
• 1× Support pole
• 1× Cube chuck mechanism
• 1× Oil-water separator
• 2× Stirring paddles
• 1× Air hose
• 1× Warranty certificate
• 1× Operation manual

*Package contents may vary based on manufacturer updates

Frequently Asked Questions

Q: What costs should I consider beyond the listed price?
A: International buyers should account for shipping fees, import duties, customs clearance, and local taxes. These costs vary by destination country. Contact our support team for a detailed quote for your region.

Q: How does the ordering process work?
A: The process involves:

1. Submitting a quote request
2. Receiving a detailed cost breakdown
3. Confirming payment method
4. Signing purchase agreement
5. Processing payment
6. Shipping coordination

Q: What is the repair policy?
A: For repairs:

• Customer covers shipping and insurance to/from repair facility
• Warranty repairs are free of charge
• Non-warranty repairs are quoted based on required service
• Standard warranty period covers manufacturing defects
• Technical support available via email and phone
