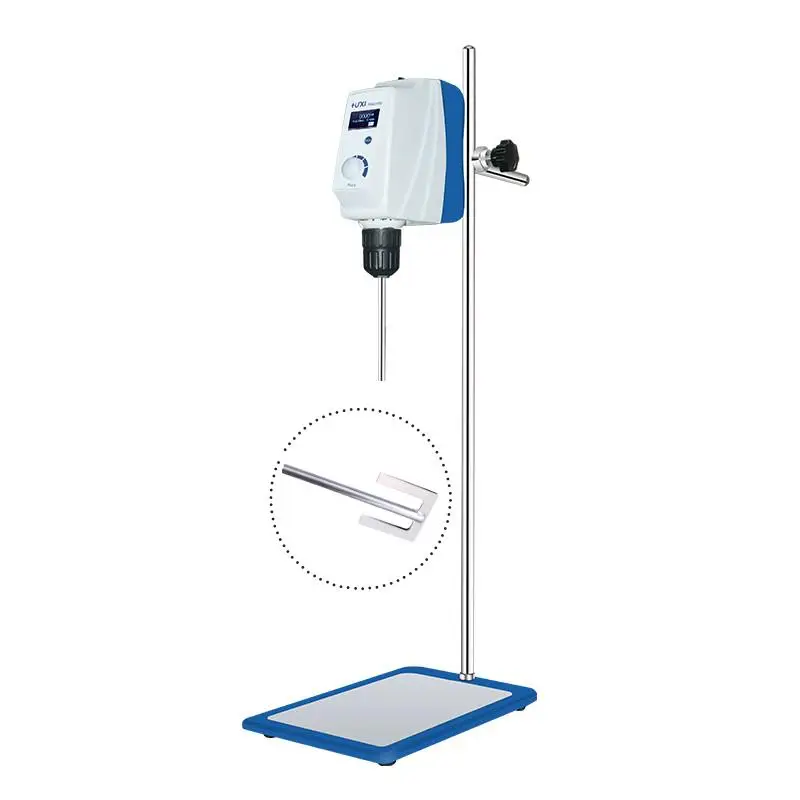

LCD Top Stirring with Square Anchor Impeller 70mm Rod Length 500mm

By /

Professional laboratory overhead stirrer with LCD display and self-locking chuck, featuring 30-2200rpm speed control and 60L stirring capacity. Equipped with 70mm square anchor impeller and brushless DC motor for reliable medium to high viscosity mixing applications.

Applications

This overhead stirrer excels in mixing medium to high viscosity liquids across chemical synthesis, pharmaceutical, petrochemical, cosmetics, food, and biotechnology applications. The LCD display offers enhanced control and safety compared to LED models. Features include:

  • Precision LCD speed and time display with fine-tuning capability
  • Wide speed range (30-2200rpm) with constant speed control
  • Durable brushless DC motor for extended operation
  • Automatic overload and motor protection systems
  • Built-in stirring paddle penetration hole for easy height adjustment
  • Automatic torque adjustment based on sample viscosity
  • Multiple stirring paddle options available

Technical Parameters

FeatureSpecification
Speed Range30-2200rpm
Capacity60L
Input Power160W
Output Power150W
Maximum Torque80N.cm
Maximum Viscosity80000mPa·s
Dimensions186×83×220mm
Weight3.0kg

Operating Parameters

FeatureSpecification
Chuck Clamping Range0.5-10mm
Speed Display Resolution±1rpm
Protection RatingIP42
Operating Temperature5-40℃
Operating Humidity80%
Power Supply100-240VAC, 50/60Hz

Impeller Specifications

  • Type: Square Anchor Impeller
  • Diameter: 70mm
  • Rod Diameter: 8mm
  • Rod Length: 500mm

Packaging Information

Each unit comes professionally packaged with:

  • 1× Complete-built stirring unit
  • 1× Operating manual
  • 1× Quality certificate
  • 1× Warranty card
  • 1× Square anchor impeller

*Note: Packaging contents may be updated based on manufacturer’s latest standard configuration.

FAQ

Q: What is the recommended rod diameter for optimal performance?
A: While the chuck can accommodate rods from 0-10mm, the optimal rod diameter range is 6-10mm for maximum stability. Rods below 6mm may experience unwanted vibration during operation.
