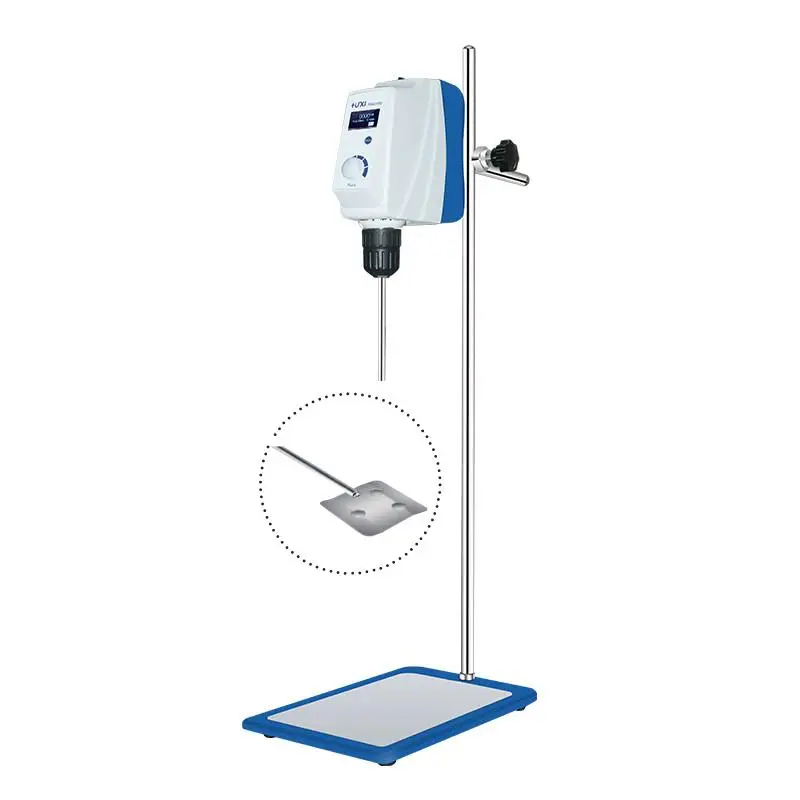

LCD Top Stirring Mixer with Round Three-Hole Fan Impeller

By /

Professional laboratory overhead stirrer featuring LCD display and brushless DC motor for precise mixing control. This unit comes with a 50mm round three-hole fan impeller, offering speeds from 30-2200rpm and 20L stirring capacity for medium to high viscosity applications.

Purpose & Applications

This LCD overhead stirrer is designed for mixing medium to high viscosity liquids in laboratory and industrial settings. It serves multiple industries including:

  • Chemical synthesis
  • Pharmaceutical research
  • Physical and chemical analysis
  • Petrochemical processing
  • Cosmetics manufacturing
  • Food production
  • Biotechnology research

Key Features

  • Clear LCD display for speed and time monitoring
  • Adjustable speed range: 30-2200rpm with constant speed control
  • Durable brushless DC motor for extended operation
  • Automatic overload protection system
  • Built-in stirring paddle penetration hole
  • Automatic torque adjustment based on sample viscosity
  • Compatible with multiple stirring paddle types

Stirring Paddle Options

The mixer supports various paddle types for different applications:

  1. Round three-hole fan type (50-100mm)
  2. Dissolving paddle (30-150mm)
  3. Three-blade paddle (70mm)
  4. Centrifugal paddle (90mm)
  5. Four-blade paddle (50-100mm)
  6. Screw type paddle (50-100mm)
  7. Round six-hole fan type (50-100mm)
  8. One-word paddle (50-60mm)
  9. Round anchor paddle (100mm)
  10. Square anchor paddle (70-140mm)
  11. Square hole fan type (50-70mm)

Specifications

ParameterValue
Speed Range30-2200rpm
Capacity20L
Input Power60W
Output Power50W
Dimensions160x80x180mm
Maximum Torque40N.cm
Weight2.6kg
Display TypeLCD
Maximum Viscosity10000mPa·s
Chuck Clamping Range0.5-10mm
Operating Temperature5-40℃
Operating Humidity80%
Voltage100-240VAC
Frequency50/60Hz
Protection RatingIP42

Package Contents

Each unit ships with:

  • Main stirring unit
  • User manual
  • Quality certificate
  • Warranty card
  • 50mm round three-hole fan impeller (8mm rod diameter, 400mm length)

Frequently Asked Questions

What costs should I consider beyond the listed price?
The listed price is the base factory price. Additional costs include:

  • International shipping fees
  • Import duties and taxes
  • Local handling charges
  • Insurance costs

What is the purchasing process?

  1. Submit inquiry through quotation form
  2. Receive detailed quote for your region
  3. Review and confirm payment terms
  4. Complete contract and payment
  5. Wait for delivery tracking information

How are repairs handled?
For international repairs:

  • Customer covers shipping and insurance to/from repair facility
  • Warranty repairs: No charge for parts and labor
  • Non-warranty repairs: Costs based on required service
  • Standard warranty period applies to manufacturing defects
