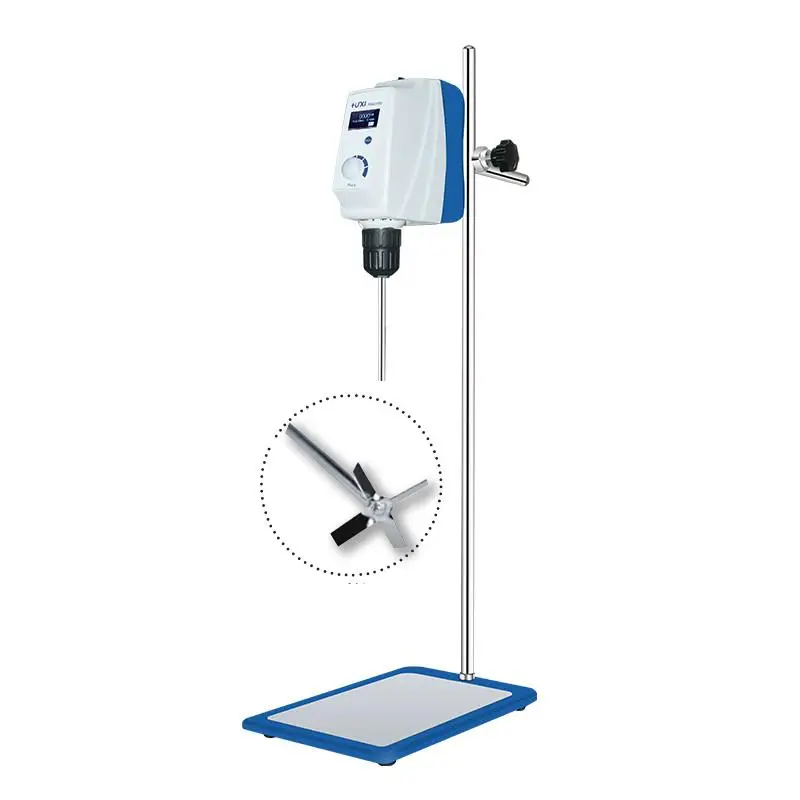

LCD Overhead Stirrer with 100mm Four-blade Impeller

By /

Professional overhead stirrer featuring LCD display and brushless DC motor for precise control of mixing operations. The self-locking chuck and four-blade impeller design enables efficient stirring of up to 40L volume with speed range of 30-2200rpm.

Key Applications

This overhead stirrer excels in mixing medium to high viscosity solutions across multiple industries:

  • Chemical synthesis and analysis
  • Pharmaceutical manufacturing
  • Petrochemical processing
  • Cosmetics production
  • Food and beverage preparation
  • Biotechnology research

Core Features

  • LCD display for precise speed and time control
  • Wide speed range (30-2200rpm) with constant speed maintenance
  • Brushless DC motor for extended operational life
  • Automatic overload protection system
  • Built-in stirring paddle penetration hole
  • Automatic torque adjustment based on sample viscosity
  • Compatible with multiple stirring paddle types

Stirring Paddle Options

The stirrer supports various paddle types for different applications:

  1. Round three-hole fan-type (50-100mm)
  2. Dissolving paddle (30-150mm)
  3. Three-blade paddle (70mm)
  4. Centrifugal paddle (90mm)
  5. Four-blade paddle (50-100mm)
  6. Screw type paddle (50-100mm)
  7. Round six-hole fan-type (50-100mm)
  8. One-word paddle (50-60mm)
  9. Round anchor paddle (100mm)
  10. Square anchor paddle (70-140mm)
  11. Square hole fan type (50-70mm)

Specifications

ParameterValue
Speed Range30~2200rpm
Capacity40L
Input Power120W
Output Power100W
Dimensions18683220mm
Maximum Torque60N.cm
Weight2.8kg
Display TypeLCD
Maximum Viscosity50000mPa·s
Chuck Diameter Range0.5~10mm
Operating Temperature5~40℃
Operating Humidity80%
Voltage100-240VAC
Frequency50/60HZ
Protection RatingIP42
Timer Range1~9999min
Impeller Specifications100mm diameter, 10mm rod diameter, 300mm rod length

Packaging Information

Each unit comes in a protective package containing:

  • Main stirrer unit
  • Operating manual
  • Quality certificate
  • Warranty documentation
  • Standard four-blade impeller

Note: Package contents may be updated based on manufacturer’s latest standard configuration.

Frequently Asked Questions

What costs should I consider beyond the listed price?
The listed price represents the factory price in mainland China. Additional costs include:

  • International shipping fees
  • Import duties and taxes
  • Local handling charges
  • Insurance costs

What is the purchasing process?

  1. Submit inquiry through quotation form
  2. Receive detailed quote for your region
  3. Review and confirm payment terms
  4. Complete contract signing
  5. Process payment
  6. Await delivery tracking information

How are repairs handled?
For repair services:

  • Customer covers shipping and insurance to/from repair facility
  • Warranty repairs are provided free of charge
  • Non-warranty repairs are quoted based on required work
  • Technical support available via email and phone
  • Detailed repair documentation provided
