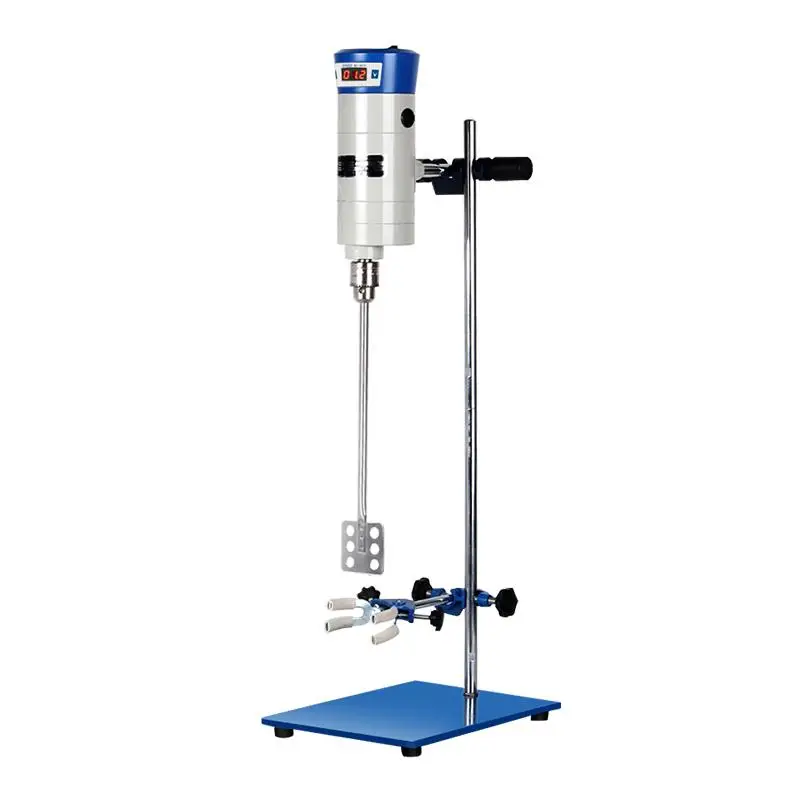

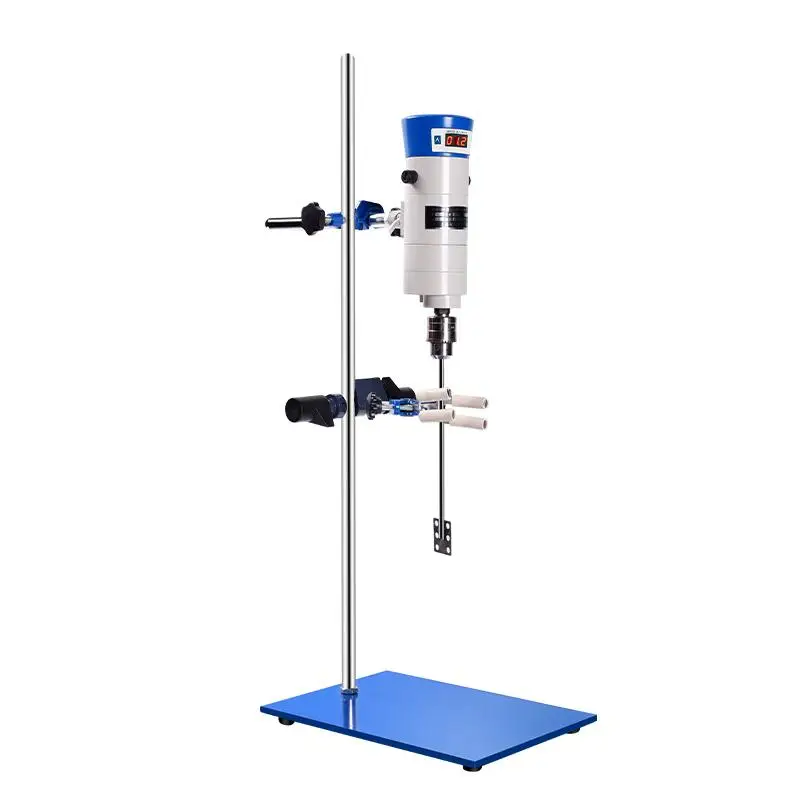

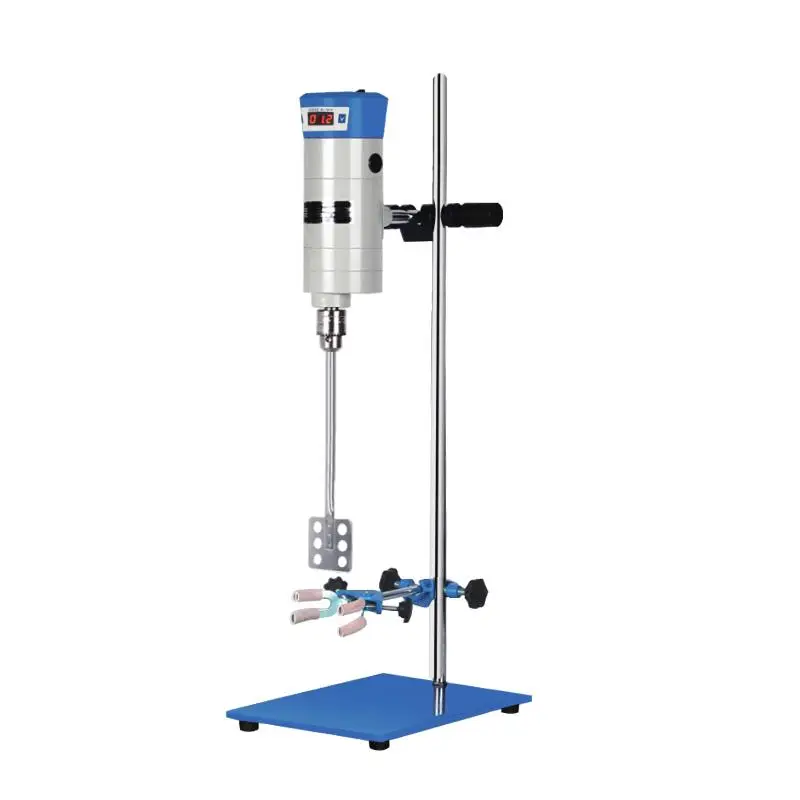

Laboratory Small Constant Speed Stirrer with Screw Impeller

By /

This laboratory stirrer features a 60mm screw impeller and durable aluminum metal construction, offering speeds from 100 to 1300 RPM with a 15L processing capacity. The digital display provides precise stepless speed control, while the series motor and multi-stage non-metallic gear system ensure stable, quiet operation.

Applications

This professional-grade laboratory mixer serves multiple experimental fields including:

  • Biology, physics, and chemistry research
  • Cosmetics development
  • Health product formulation
  • Food science applications
  • General liquid media mixing and stirring

Key Features

  • Multiple stirring impeller options for versatile applications
  • Quick-release rolling head design for easy impeller changes
  • Open frame construction accommodates various container sizes
  • Stepless speed control with digital display
  • Heavy-duty aluminum housing for precision and durability
  • High-power series motor with compact design
  • Enhanced low-speed torque output
  • Multi-stage non-metallic gear system for quiet operation

Impeller Options

The stirrer comes with 11 specialized impeller designs:

  1. Round three-hole fan-type
  2. Dissolving paddle
  3. Three-blade design
  4. Centrifugal type
  5. Four-blade configuration
  6. Screw type
  7. Round six-hole fan-type
  8. One-word style
  9. Round anchor design
  10. Square anchor type
  11. Square hole fan type

Each impeller type is optimized for specific mixing applications and viscosity ranges.

Specifications

FeatureSpecification
Speed Range100~1300rpm
Processing Capacity15L
Input Power85W
Output Power50W
Dimensions300260760mm
Speed ControlStepless regulation
Power SupplyAC 220V 50Hz
Maximum Torque94N.cm
Total Weight9.2kg
Impeller TypeScrew Impeller
Impeller Diameter60mm
Rod Diameter8mm
Rod Length350mm

Packaging Information

Each unit ships with:

  • Main stirrer unit (fully assembled)
  • User manual
  • Quality certificate
  • Warranty documentation
  • One screw impeller (60mm)

*Package contents may vary based on latest manufacturer specifications

FAQ

Q: What are the advantages of the screw impeller design?

A: The screw impeller is specifically engineered for low-speed operation in laminar flow conditions. It creates a consistent axial circulation pattern as liquids move along the helical surface. This design is particularly effective for mixing and heat transfer in medium to high-viscosity liquids, providing thorough and gentle mixing without excessive shear forces.
