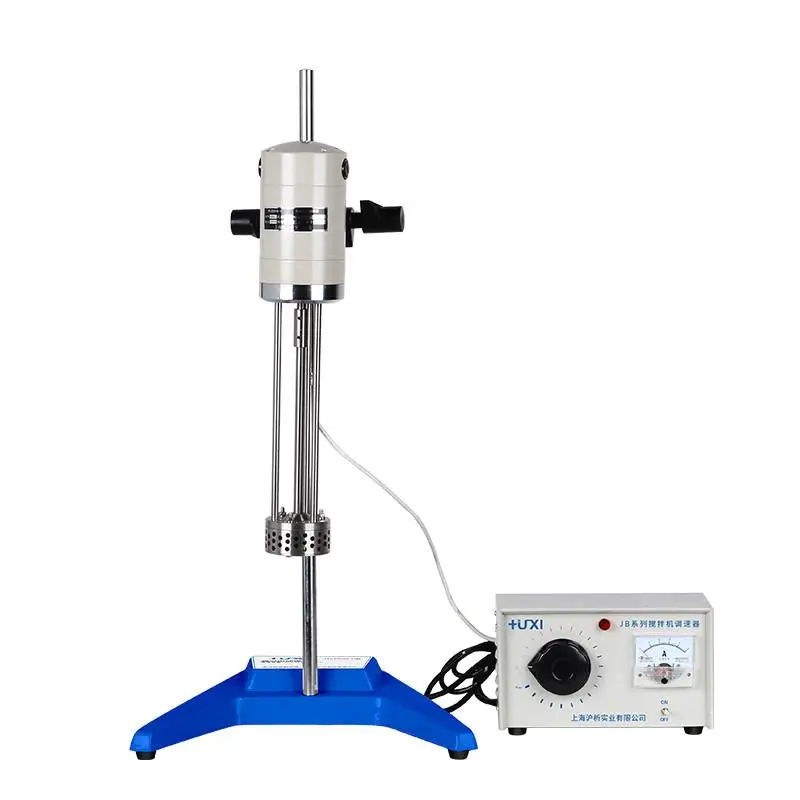

Professional laboratory shear emulsification stirrer with variable speed control from 200 to 11000rpm and 40L processing capacity. Features a powerful 510W input power system with 300W output, delivering 34.1N.cm rated torque through a φ70mm working head with multiple stator configurations.
Overview
This laboratory shear emulsification stirrer is engineered for precise mixing and emulsification in laboratory and pilot plant settings. The system combines:
- High-density die-cast aluminum alloy motor housing
- Stainless steel shear emulsification head for durability
- Digital speed controller with touch interface
- Three interchangeable stator configurations
- Stable high-speed operation via shaft joint connection
- Stepless speed regulation with digital display
The unit efficiently handles low to high-viscosity liquids and granular materials in liquid media, making it ideal for research and development applications.
Specifications
| Parameter | Value |
|---|---|
| Speed Range | 200~11000rpm |
| Processing Capacity | 40L |
| Input Power | 510W |
| Output Power | 300W |
| Dimensions | 250650720mm |
| Power Supply | AC 220V 50Hz |
| Maximum Torque | 34.1N.cm |
| Impeller Diameter | F70mm |
| Stator Configurations | 5mm², 20mm², 50mm² |
Packaging Information
Standard package includes:
- Main emulsification unit
- Base assembly with column and support frame
- Speed control box with power cord
- Two stator configurations (5mm² and 50mm²)
- Maintenance tools (M5 wrench)
- Spare brush
- Documentation package (conformity certificate, warranty card, user manual)
Package contents may vary based on latest manufacturer specifications
Frequently Asked Questions
Q: Which stator should I use for low viscosity liquids?
A: For low viscosity liquids and fine particle dissolution, the 5mm² stator is recommended for optimal results.
Q: What distinguishes the JRJ300-D-1 from JRJ300-SH models?
A: The main difference lies in the control interface. The JRJ300-D-1 features a stepless governor with digital display and touch controls for precise speed adjustment.
Q: How does the JRJ series compare to FJ series?
A: The JRJ series is specifically designed for high-viscosity applications, while the FJ series is better suited for general viscosity materials.
Q: Does this equipment meet industry standards?
A: The stirrer complies with GB/T11543 standards. Contact technical support for specific compliance details and applications.
