Laboratory High Speed Overhead Stirrer with LCD Display and Six-Hole Fan Impeller

By /

Professional laboratory overhead stirrer featuring a 50mm round six-hole fan-blade impeller and LCD display for precise control. Operates at 30-2200rpm with low noise output, offering adjustable speed control and 40L stirring capacity, powered by a reliable brushless DC motor.

Overview

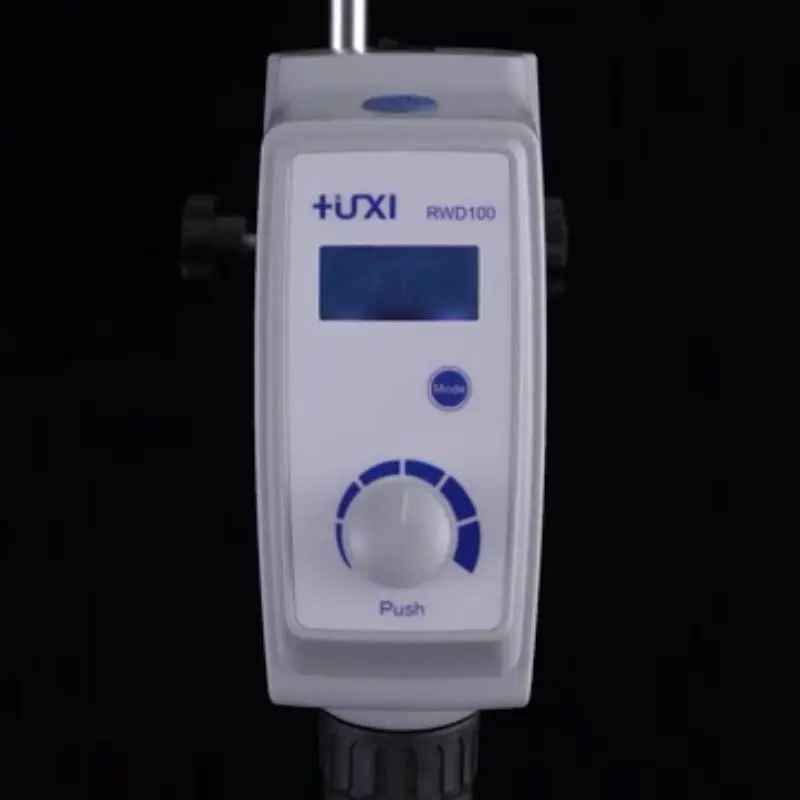

This overhead stirrer excels in mixing medium to high viscosity liquids across various laboratory applications. The LCD display offers enhanced safety and control compared to basic LED models. Key features include:

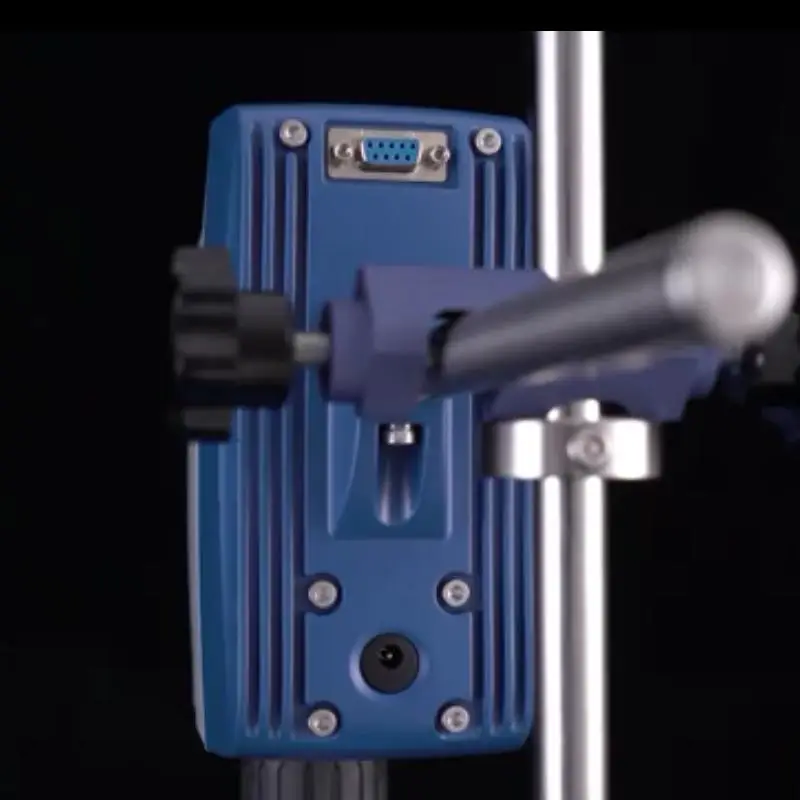

  • Self-locking chuck with square lifting clips
  • Automatic torque adjustment based on sample viscosity
  • Overload protection with automatic shutoff
  • Suitable for solid-liquid and liquid-liquid mixing
  • Continuous operation capability for extended use
  • Multiple stirring paddle options available

Common Applications

  • Chemical synthesis
  • Pharmaceutical research
  • Physical and chemical analysis
  • Petrochemical processing
  • Cosmetics manufacturing
  • Food production
  • Biotechnology research

Technical Specifications

ParameterValue
Speed Range30-2200rpm
Maximum Capacity40L
Input Power120W
Output Power100W
Maximum Torque60N.cm
Maximum Viscosity50000mPa·s
Timer Range1-9999min
Chuck Diameter Range0.5-10mm
Operating Temperature5-40℃
Humidity RangeUp to 80%
Power Supply100-240VAC, 50/60Hz
Protection RatingIP42
Unit Dimensions186×83×220mm
Total Weight2.8kg

Impeller Specifications

  • Type: Round Six Hole Fan
  • Diameter: 50mm
  • Rod Diameter: 8mm
  • Rod Length: 350mm

Package Contents

Each unit ships with:

  • Main stirrer unit
  • 50mm six-hole fan impeller
  • User manual
  • Quality certificate
  • Warranty card

Note: Package contents may vary based on latest manufacturer specifications.

Frequently Asked Questions

What costs should I expect beyond the listed price?
International buyers should account for:

  • Shipping fees
  • Import duties and taxes
  • Customs clearance fees
  • Local handling charges

How do I purchase this stirrer?

  1. Submit quote request through website
  2. Receive detailed pricing for your region
  3. Review and confirm payment terms
  4. Complete purchase agreement
  5. Process payment
  6. Track shipment to delivery

What is the repair process?
For warranty service:

  • Customer covers shipping to service center
  • Repairs are free within warranty period
  • Return shipping covered by manufacturer

For out-of-warranty repairs:

  • Customer covers all shipping costs
  • Repair costs based on required parts and labor
  • Written estimate provided before work begins
