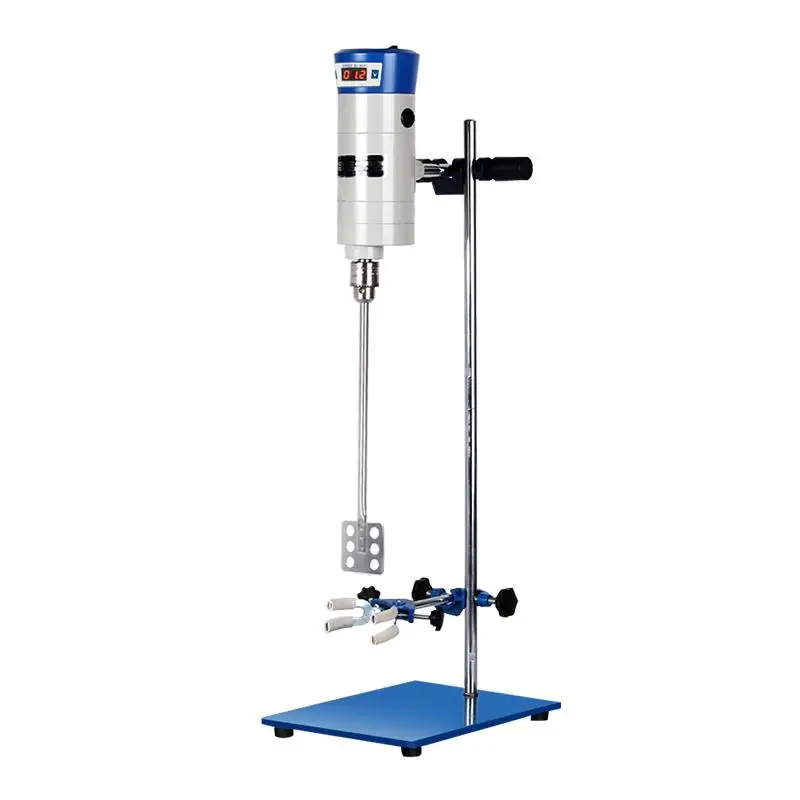

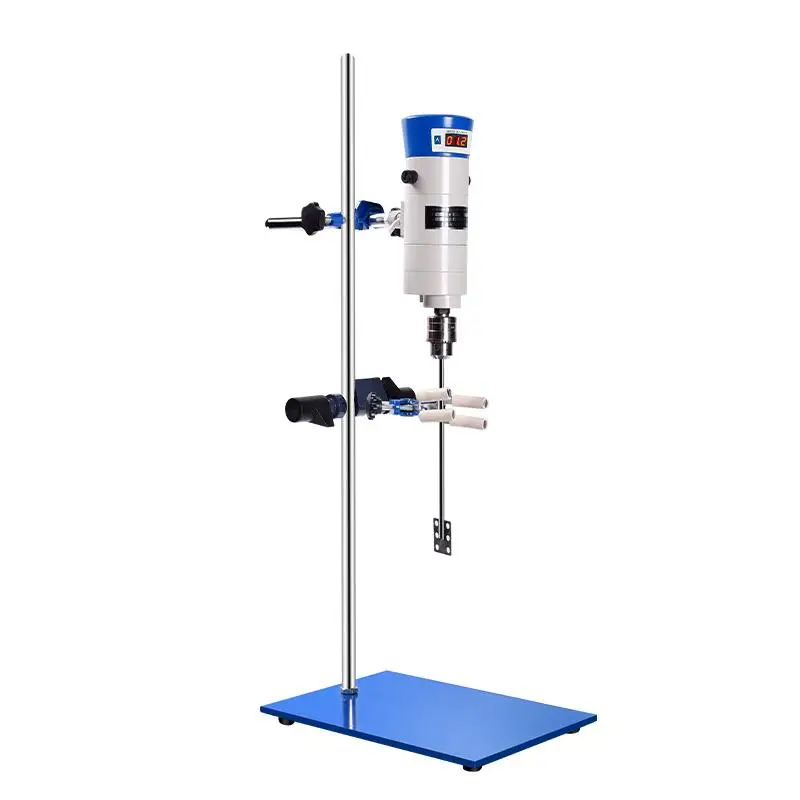

JB50-SH Numerical Control PowerBasic Stirrer with 100mm Impeller and 400mm Rod Length

By /

This laboratory stirrer features a robust aluminum metal body and a 100mm four-blade impeller for efficient mixing. The digital display offers stepless speed control from 100 to 1300rpm, powered by a series motor with multi-stage non-metallic gears for stable, quiet operation. Capable of processing up to 15L with precision and reliability.

Applications

This versatile laboratory mixer serves multiple experimental fields including:

  • Biology, physics, and chemistry research
  • Cosmetics development
  • Health product formulation
  • Food processing
  • General laboratory mixing applications

The stirrer combines professional manufacturing with practical features:

  • Large low-speed torque output
  • Digital speed control with precise data collection
  • Multi-stage non-metallic gear system
  • Quick-release stirring rod mechanism
  • Stable operation with minimal noise

Available Paddle Options

The stirrer accommodates 11 different paddle types, each designed for specific applications:

  1. Round three-hole fan-type (mild stirring, medium/low speeds)
  2. Dissolving paddle (high shear force, medium/high viscosity)
  3. Three-blade (axial flow, medium/high speeds)
  4. Centrifugal (foldable, narrow-mouth containers)
  5. Four-blade (standard type, medium/low viscosity)
  6. Screw type (high viscosity, slow speed)
  7. Round six-hole fan (good heat exchange, mild stirring)
  8. One-word paddle (medium/low viscosity)
  9. Round anchor (prevents wall deposits)
  10. Square anchor (polymer reactions, high viscosity)
  11. Square hole fan (medium/low speeds)

Specifications

ParameterValue
Speed Range100~1300rpm
Processing Capacity15L
Input Power85W
Output Power50W
Dimensions300260760mm
Speed ControlStepless regulation
Power SupplyAC 220V 50Hz
Maximum Torque94N.cm
Weight9.2kg
Impeller TypeFour Blade
Impeller Diameter100mm
Rod Diameter10mm
Rod Length400mm

Packaging Information

Each unit includes:

  • 1x Fully assembled stirrer unit
  • 1x Operation manual
  • 1x Quality certificate
  • 1x Warranty card
  • 1x Four-blade impeller (100mm)

*Package contents may vary based on manufacturer’s latest standard configuration.

FAQ

What size laboratory should use this stirrer?
This model is ideal for small to medium laboratories processing 2-15L of material. It works best with solutions of moderate viscosity and is commonly used in research facilities, quality control labs, and small-scale production environments.

What materials can it mix?
The stirrer is suitable for various laboratory solutions including chemical compounds, biological media, and pharmaceutical preparations with low to medium viscosity. The four-blade impeller provides efficient mixing for most standard laboratory applications.
