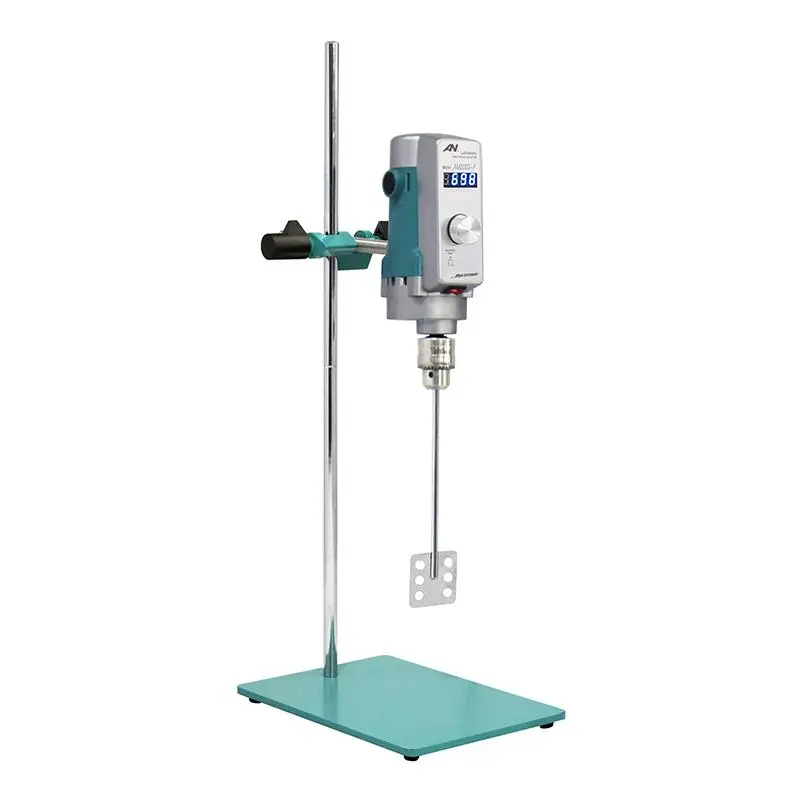

Electric Stirrer with Digital Display and Fan Impeller

By /

A professional-grade electric stirrer featuring digital speed control and advanced protection systems. The upgraded model includes overload protection, timing functionality, and speed memory, allowing precise control and easy operation through the LED digital display.

Overview

This laboratory-grade electric stirrer is engineered for mixing liquids of various viscosities. Key features include:

  • Powered by a compact series-excited micro-motor
  • Constructed with high-quality engineering plastic and die-cast aluminum alloy
  • Variable speed booster mechanism doubles output torque
  • Microprocessor-controlled speed regulation maintains consistent mixing
  • Soft start and automatic overload protection for safe continuous operation
  • Stepless speed adjustment for precise control
  • Digital display for accurate speed monitoring
  • Built-in timer for controlled experimental conditions
  • Quick-chuck system for easy impeller changes

Specifications

FeatureSpecification
Input Power510W
Output Power300W
VoltageAC 220V
Frequency50/60Hz
Speed Range100-1800 rpm
Maximum Torque143.3N.cm
Processing Capacity50-40000ml
Maximum Viscosity100000mPa.s
Chuck Range2-13mm
Operating Temperature≤40℃
Relative Humidity≤80%
Protection RatingIP40
Dimensions215×310×720mm
Weight9 kg

Packaging Information

Each unit comes in a protective package containing:

  • 1× Electric Stirrer
  • 1× Warranty Card
  • 1× User Manual

*Package contents may vary based on manufacturer’s latest standard configuration.

FAQ

Q: Does this stirrer meet HG/T20569 standard requirements?
A: Yes, this electric stirrer complies with HG/T20569 standard specifications for laboratory mixing equipment, ensuring reliable performance for scientific and industrial applications.
