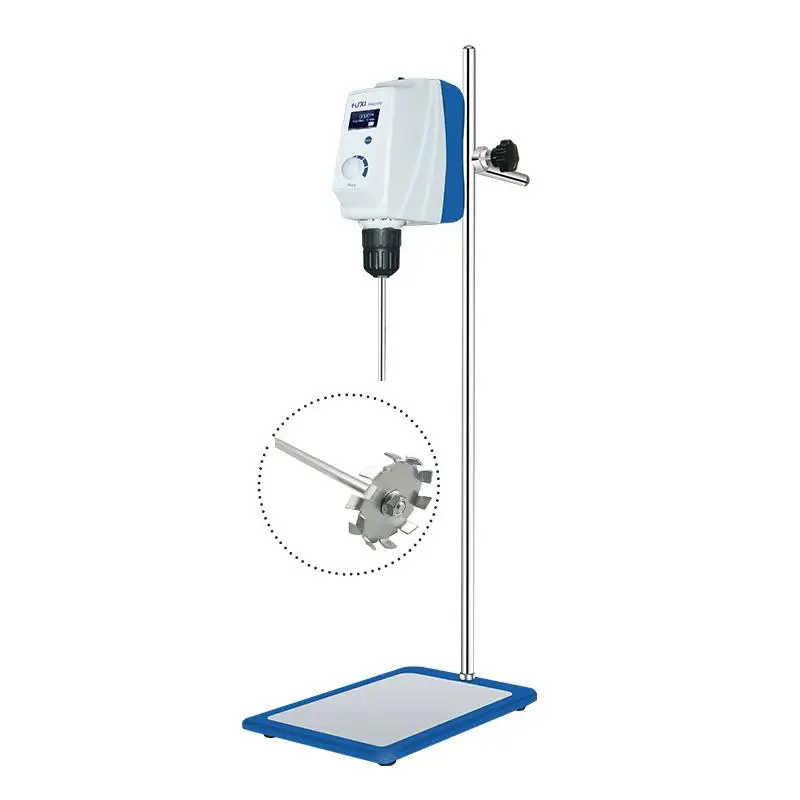

Digital Display Overhead Stirrer with 150mm Dissolving Impeller and 350mm Rod

By /

Professional laboratory overhead stirrer with LCD display and self-locking chuck system for precise mixing control. Features a powerful brushless DC motor delivering 30-2200rpm speed range and 60L stirring capacity, ideal for medium to high viscosity liquid mixing applications.

Applications

This advanced overhead stirrer is engineered for mixing medium to high viscosity liquids in laboratory and industrial settings. The LCD interface provides enhanced control and safety compared to basic LED models. Perfect for:

  • Chemical synthesis and analysis
  • Pharmaceutical production
  • Petrochemical processing
  • Cosmetics manufacturing
  • Food processing
  • Biotechnology research

Key Features

  • LCD display with real-time speed and time adjustment
  • Wide speed range: 30-2200rpm with constant speed control
  • Durable brushless DC motor for extended operation
  • Automatic overload protection system
  • Built-in stirring paddle penetration hole
  • Dynamic torque adjustment
  • Compatible with multiple stirring paddle designs

Specifications

ParameterValue
Speed Range30~2200rpm
Mixing Capacity60L
Input Power160W
Output Power150W
Maximum Torque80N.cm
Maximum Viscosity80000mPa·s
Chuck Clamping Range0.5~10mm
Dimensions18683220mm
Weight3.0kg
Operating Temperature5~40℃
Operating Humidity80%
Voltage100-240VAC
Frequency50/60HZ
Protection RatingIP42

Packaging Information

Each unit ships in a protective package containing:

  • 1x Complete overhead stirrer unit
  • 1x Dissolving impeller (150mm diameter, 350mm rod length)
  • 1x User manual
  • 1x Quality certificate
  • 1x Warranty card

Package contents may vary based on latest manufacturer specifications

FAQ

Q: What rod diameters are compatible with this stirrer?
A: While the chuck can accommodate rods from 0-10mm, optimal performance is achieved with 6-10mm diameter rods. Rods below 6mm may experience stability issues during operation.
