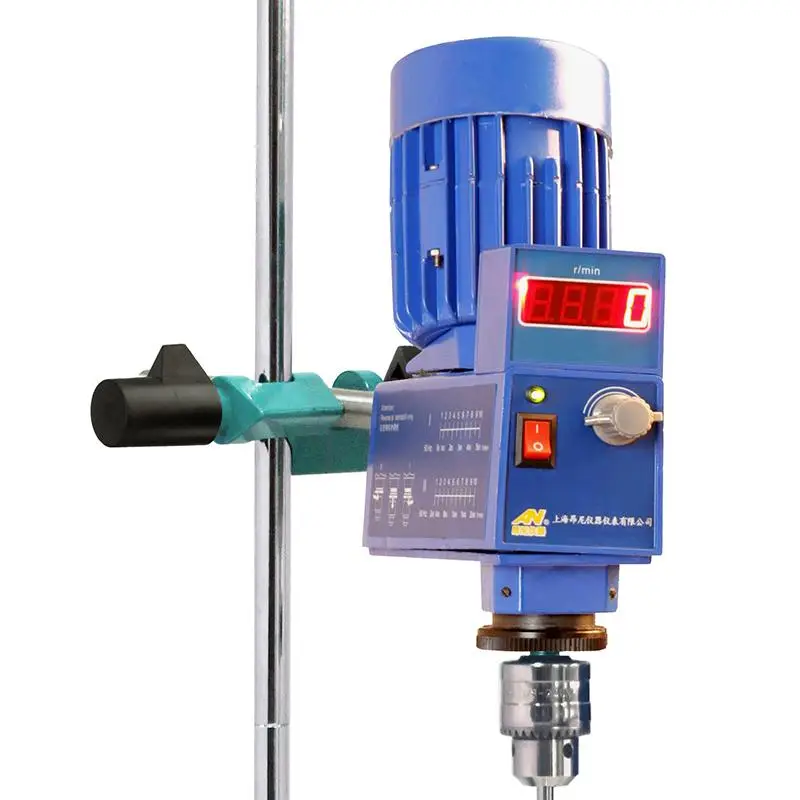

This laboratory-grade digital display cantilever stirrer features German engineering principles with dual-speed regulation for precise control. The advanced motor delivers consistent performance with minimal noise, making it ideal for long-duration mixing operations.
Overview
This professional-grade digital display cantilever stirrer is engineered for laboratory mixing applications, handling liquids from low to high viscosity. The unit features:
- Compact micro motor drive system
- High-density die-cast aluminum alloy construction
- IC speed detection with constant power regulation
- Digital speed display for accurate data monitoring
- Dual-speed mechanism with automatic torque adjustment
- Real-time speed compensation for load changes
- Stable performance during extended operation periods
Technical Parameters
| Parameter | Specification |
|---|---|
| Rated Voltage | AC 220V |
| Rated Frequency | 50/60Hz |
| Input Power | 180W |
| Output Power | 120W |
| Max Torque | 52N.cm |
| Working Mode | S1 (continuous) |
| Operation Control | Control knob |
| Speed Range | 60-500rpm/240-2000rpm |
| Speed Regulation | Promise; high and low second gear |
Physical Specifications
| Feature | Detail |
|---|---|
| Impeller Fixing | Quick chuck |
| Rotary Collet Range | Φ2-10mm |
| Stirring Rod Diameter | 8mm |

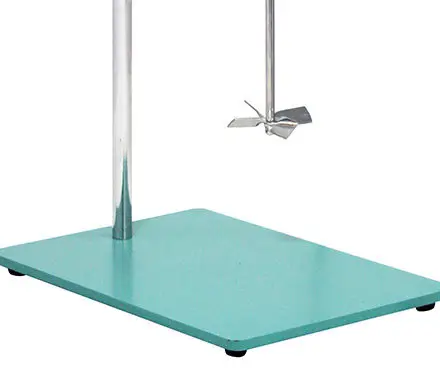

| Impeller Type | Four Blade Spiral |
| Processing Capacity | 50-20000ml |
| Maximum Viscosity | 10000mPa.s |
Operating Conditions
| Condition | Value |
|---|---|
| Working Temperature | ≤40℃ |
| Relative Humidity | ≤80% |
| Dimensions | 215310720mm |
| Weight | 10kg |
Packaging Information
Each unit comes in a protective package containing:
- 1x Digital Display Cantilever Stirrer
- 1x Warranty Card
- 1x User Manual
Note: Package contents may vary based on manufacturer’s latest standard configuration.
Frequently Asked Questions
Q: Can this stirrer handle 40L of low viscosity liquid?
A: No, this stirrer is designed for volumes between 50ml and 20000ml (20L). For optimal performance and safety, do not exceed the maximum capacity of 20L. The device complies with HG/T20569 Cantilever Stirrer standards for laboratory use.
